Operational Overview
Learn how to interact with the Babbeleaf device using its physical controls or through the advanced web application interface.
Two Ways to Use Babbeleaf
The Babbeleaf device is designed to support both standalone physical operation and advanced web-based control. This dual-mode flexibility ensures it is equally suited for casual exploration and precision research.
Standalone Mode
Babbeleaf can operate independently, without needing to connect to any external device. It includes all essential hardware to observe plant signals in real time:
- Input Leads — Connect directly to plant leaves or conductive pads
- Power Switch — Turns the device on or off
- Volume & Gain Dials — Adjust output loudness and signal sensitivity
- Internal Speaker — Plays real-time audio generated from the plant signal
- USB-C Port — For battery recharging
In this mode, Babbeleaf functions like an intuitive bio-acoustic instrument — no configuration or wireless connection required.

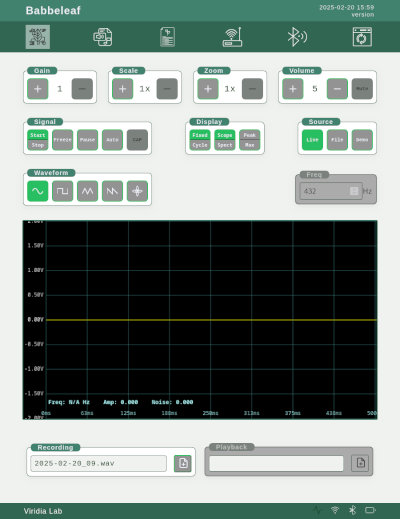

Web App Interface
When greater control or signal analysis is needed, Babbeleaf broadcasts itself as a Wi-Fi access point. Users can connect using a phone (not recommended), tablet, or computer to access the integrated web application. Because the detailed interface, it is recommended to use a tablet for field, classroom, and lab work, or a desktop computer.
Web Interface Structure
The web interface is divided into four primary regions:
- Header — Displays the current date, time, and Babbeleaf software version
- Navigation — A responsive menu with links to all device functions
- Main Content Area — Displays the currently selected settings or visualizations
- Footer — Shows live status indicators for input signal, Wi-Fi, Bluetooth, and battery
The web application offers access to detailed features such as:
- Live waveform visualization
- Audio and signal recording controls
- Playback and demo signal tools
- Wireless pairing (Wi-Fi & Bluetooth)
- System updates and diagnostics
Why It Matters
By combining embedded hardware with an optional user interface, Babbeleaf supports everything from spontaneous outdoor listening to lab-grade signal research. Users can begin simply, then expand their capabilities as needed.
